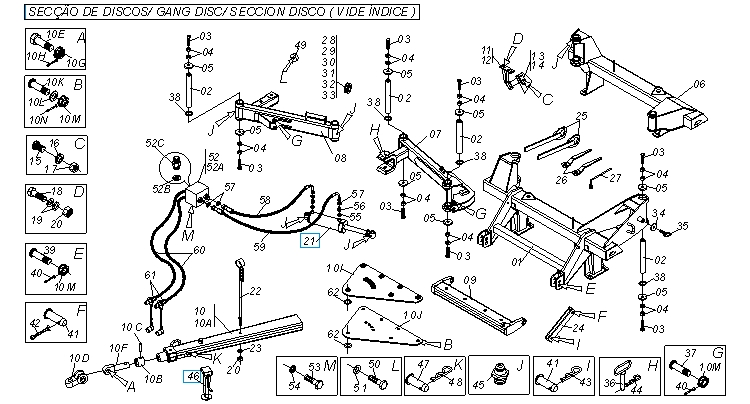

Tatu Marchesan 9017 GASPM HD (Ref #0909091431) Parts Book
Heavy Duty Hinge Offset Disk HarrowClick here to view this harrow's product page (includes detailed specs, images and pricing)
|
Call us toll-free today at 1-800-340-3402 for more info
International customers: Click here to contact us online or call us at 352-376-4888. |
| ITEM | CODE | DESCRIPTION | QT |
|---|---|---|---|
| 01 | 0511067504 | FRONT GANG CARRIER | 01 |
| 02 | 0541011899 | 2.9" X 20" COUPLING SHAFT | 04 |
| 03 | 0503012660 | 1" X 4" BOLT | 08 |
| 04 | 0503013635 | 1" NUT | 16 |
| 05 | 0511013244 | FLAT WASHER | 08 |
| 06 | 0511067505 | REAR GANG CARRIER | 01 |
| 07 | 0511067192 | REAR STABILIZER BAR | 01 |
| 08 | 0511067182 | FRONT STABILIZER BAR | 01 |
| 09 | 0511065973 | 1705 HITCH BAR | 01 |
| 10 | 0511041592 | DRAWBAR ASSY | 01 |
| 10A | 0511064669 | DRAWBAR | 01 |
| 10B | 0502040263 | LOCK RING | 01 |
| 10C | 0501014219 | 32M107 PIN | 01 |
| 10D | 0502040293 | YH-90 CLEVIS | 01 |
| 10E | 0511067199 | 2" BOLT | 01 |
| 10F | 0502040264 | DRAWBOLT | 01 |
| 10G | 0502040558 | 2" CASTLE NUT | 01 |
| 10H | 0503010074 | 3/8 X 0,15" COTTERPIN | 01 |
| 10I | 0511064659 | UPPER PLATE | 01 |
| 10J | 0511064658 | LOWER PLATE | 01 |
| 10K | 0521011880 | 37,50 X 242 COUPLING SHAFT | 06 |
| 10L | 0501012916 | FLAT WASHER | 06 |
| 10M | 0501011301 | 1.1/2" CASTLE NUT | 10 |
| 10N | 0503010010 | 1/4" X 2.1/2" COTTERPIN | 06 |
| 11 | 0511064771 | FRONT SCRAPER SUPPORT | 08 |
| 12 | 0511064772 | REAR SCRAPER SUPPORT | 08 |
| 13 | 0521013678 | FRONT SCRAPER | 08 |
| 14 | 0521013679 | REAR SCRAPER | 08 |
| 15 | 0503012195 | 5/8" X 1-1/4" FRENCH BOLT | 32 |
| 16 | 0503010027 | 5/8" SPRING WASHER | 32 |
| 17 | 0503010013 | 5/8" NUT | 32 |
| 18 | 0501010500 | 3/4" X 3" BOLT | 32 |
| 19 | 0541010763 | 0.8" X 1.6" X 0.2" FLAT WASHER | 64 |
| 20 | 0503010014 | 3/4" NUT | 33 |
| 21 | 0511044812 | 63.5 X 150 X 950 X 55 HYDR CYLINDER | 01 |
| 22 | 0511064470 | HOSE HOLDER ASSY | 01 |
| 23 | 0503010023 | 3/4" SPRING WASHER | 01 |
| 24 | 0541011205 | DRAWBAR LOCK SAFETY | 02 |
| 25 | 0501061044 | 2-1/8" AND 2-1/2" GANG BOLT WRENCH | 02 |
| 26 | 0501011432 | 1-1/2" AND 1-5/8 GANG BOLT WRENCH | 02 |
| 27 | 0501062300 | 1-1/4" WRENCH | 01 |
| 28 | 0511042161 | 2.1/2" ROD STOP ASSY | 01 |
| 29 | 0511042162 | 2.1/2" ROD STOP ASSY | 01 |
| 30 | 0511042163 | 2.1/2" ROD STOP ASSY | 01 |
| 31 | 0511042164 | 2.1/2" ROD STOP ASSY | 01 |
| 32 | 0511042165 | 2.1/2" ROD STOP ASSY | 01 |
| 33 | 0511042166 | 2.1/2" ROD STOP ASSY | 01 |
| 34 | 0521011722 | 4.7" X 13/16" X 0.16" WASHER | 01 |
| 35 | 0501069343 | WRENCH FIXER | 01 |
| 36 | 0501069350 | 230 PIVOT SHAFT WITH PULL | 01 |
| 37 | 0531018099 | 1.4" X 7.5" COUPLING SHAFT | 02 |
| 38. | 0541011534 | FLAT WASHER | 04 |
| 39 | 0531018100 | 1.4" X 8.6" COUPLING SHAFT | 02 |
| 40 | 0503010010 | 1/4" X 2.1/2" COTTERPIN | 04 |
| 41 | 0521010573 | 0.9" X 3.1" COUPLING SHAFT | 02 |
| 42 | 0503010571 | 1/4" X 1.1/2" COTTERPIN | 01 |
| 43 | 0503030012 | HAIR PIN | 01 |
| 44 | 0503031035 | HAIR PIN | 01 |
| 45 | 0503010002 | GREASE FITTING | 14 |
| 46 | 0511043153 | DRAWBAR JACK | 01 |
| 47 | 0541011345 | 16 X 68 PLUGER | 01 |
| 48 | 0503030168 | HAIR PIN | 01 |
| 49 | 0521011481 | BEATER GANG CARRIER | 01 |
| 50 | 0501010108 | 5/8" X 1" BOLT | 01 |
| 51 | 0501012140 | FLAT WASHER | 01 |
| 52 | 0501055696 | DISCHARGE VALVE OFS ASSY | 01 |
| 52A | 0503010919 | DISCHARGE VALVE | 01 |
| 52B | 0503010190 | 2-114 N 3006-9B O'RING | 04 |
| 52C | 0503030923 | 3/4" UNF X 13/16UN OFS X 40 NIPPLE | 04 |
| 53 | 0503010237 | 3/8" X 1" HEX BOLT G5 | 02 |
| 54 | 0503010025 | 3/8" SPRING WHASHER | 02 |
| 55 | 0503010190 | 2-114 N 3006-9B O'RING | 02 |
| 56 | 0503030923 | 3/4" UNF X 13/16UN OFS X 40 NIPPLE | 02 |
| 57 | 0503011030 | 2-014 N 3006-9B O'RING | 06 |
| 58 | 0501080554 | 1/2" X 27.6" TR-TC OFS HOSE | 01 |
| 59 | 0501081054 | TR-TC HOSE ASSY | 01 |
| 60 | 0501080917 | 1/2" X 208" TR-TM HOSE ASSY | 02 |
| 61 | 0501053834 | QUICK CONECTION (MALE) 1/2NPT | 02 |
| 62 | 0521011721 | 1.6" X 3.94" X 0.12" WASHER | 02 |
